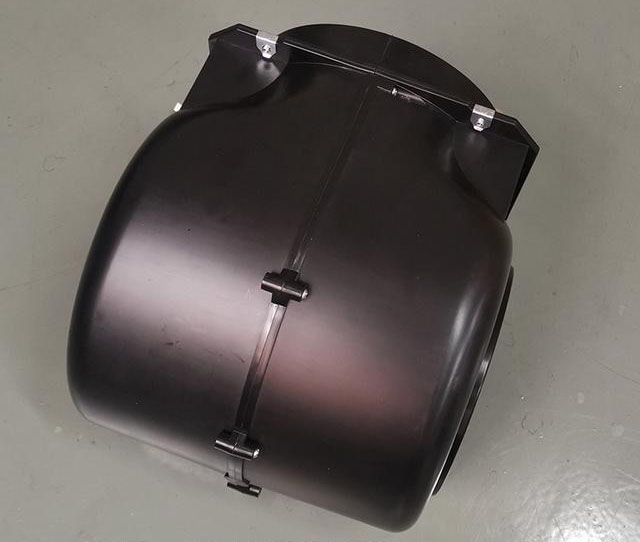

1000CFM double inlet all-plastic EC160 external rotor centrifugal fan

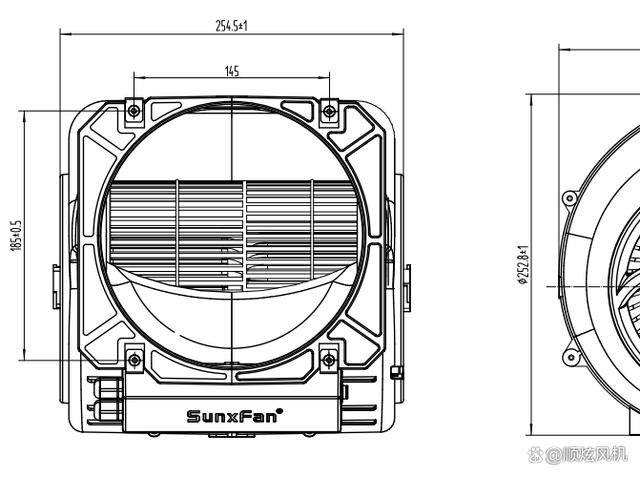

In the field of large static pressure and large air volume range hoods,Ventilation System dehumidification equipment, air conditioning and refrigeration, etc., due to the installation space or volume limited to 275*253*254 (mm) length, width and height, Sunxfan launched the following EC Double inlet fan:

Maximum air volume of 2000m³/h @ 0Pa

Input power less than 280W

Maximum static pressure 680Pa

Can be 0-10V/PWM stepless speed regulation or 4-speed fixed speed

Single fan maximum noise 64dB (A)

With CCC, CE certification

EC160 double inlet centrifugal fan

EC160 double inlet centrifugal fan

EC160 double inlet centrifugal fan
