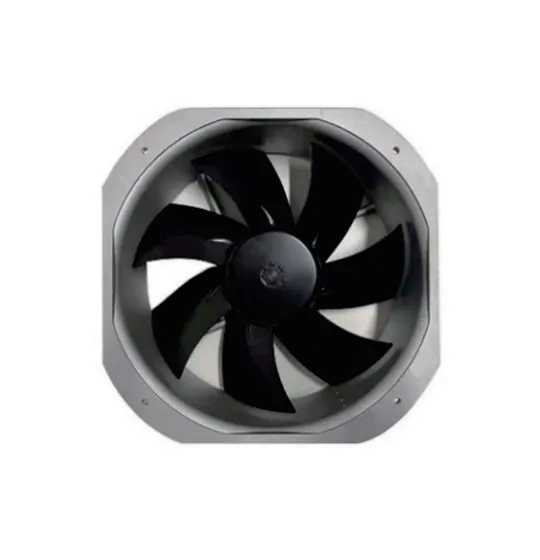

Material: Impeller made of cold plate with electric-coating,7 fan blades, the frame made of aluminum alloy
Bearing: Ball bearing
Speed control: Control input 0~10V/PWM
Working Temp: -25~ +55°C
Insulation Class: B
Protection Class: IP44
Approvals: CCC, CE

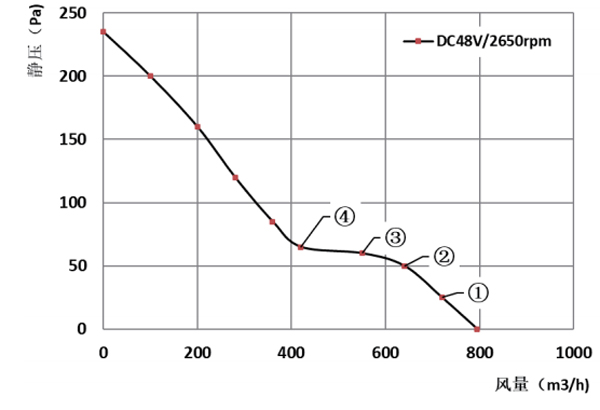

Performance:
Working Point | Static Pressure(Pa) | Airflow (m3/h) | Speed (r/min) | Power (W) |
1 | 25 | 720 | 2600 | 50 |
2 | 50 | 640 | 2560 | 52 |
3 | 60 | 550 | 2490 | 55 |
4 | 65 | 420 | 2450 | 53 |
Parameter: (Can be customized)
Fan Model | Motor type | Voltage | Power | Current | Speed | Airflow | Noise |
(V) | (W) | (A) | (r/min) | (m3/h) | Lp:dB(A) | ||
AG200B-D092A6--** | DM092A6 | DC24V | 50 | 2,1 | 2650 | 800 | 68 |
AG200B-D092A8--** | DM092A8 | DC48V | 50 | 1.02 | 2650 | 800 | 68 |
AG200B-D092A8--** | DM092A0 | DC310/160V | 49 | 0.3 | 2650 | 800 | 68 |
