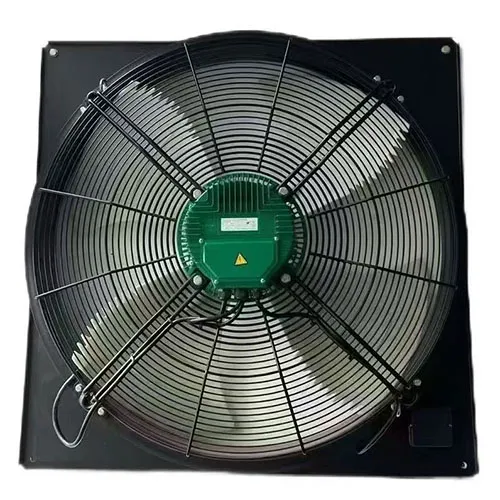

AS950A-E200B4-L1 Axial Fan
AS950A-E200B4-L1 Axial Fan

AS950A-E200B4-L1 Axial Fan|EC950

Model: EC950-3.2KW

Phase: 3

Voltage: 380-480 VAC

Frequency: 50/60 Hz

Speed: 950 ±5% RPM

0-10Vdc/PWM/Rs485

Power: 3200 ±10% W

Current: 7.0 ±10% A

Static Pressure: 130 Pa

Airflow: 29000 ±10% m³/h

Noise: ≤80+1.5 dBA

Protection Level: IP55


Get a Free Quote

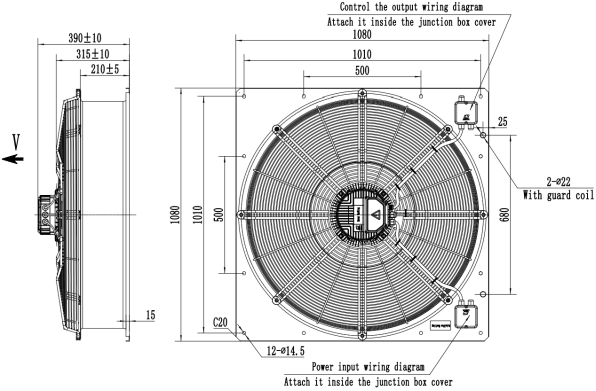

Dimension of AS950A-E200B4-L1 Axial Fan

Dimension of AS950A-E200B4-L1 Axial Fan

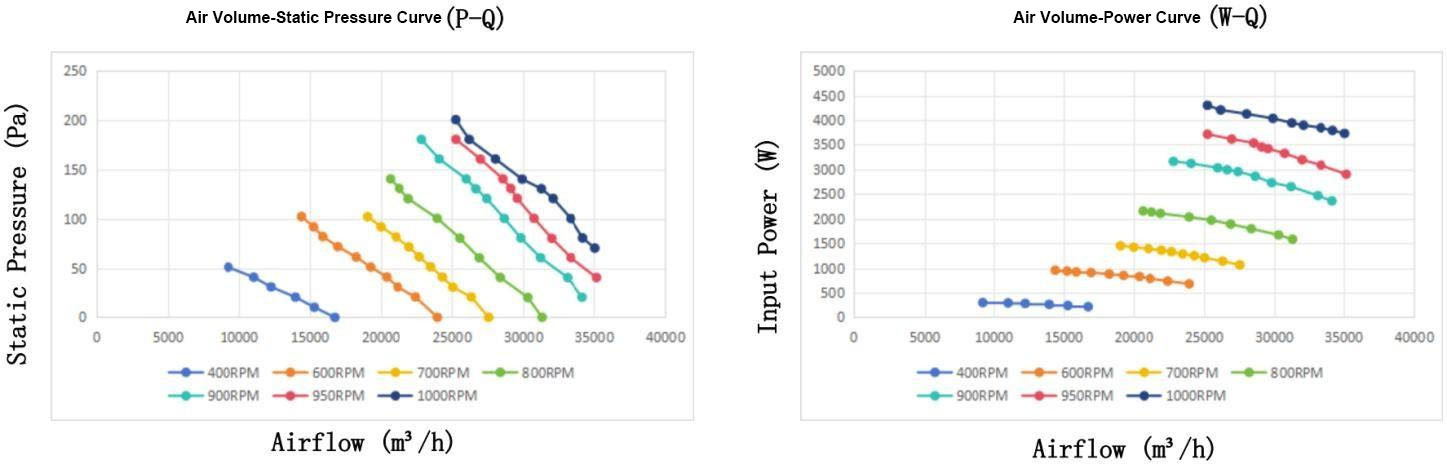

Parameter of AS950A-E200B4-L1 Axial Fan

Parameter of AS950A-E200B4-L1 Axial Fan


*

  • Wide range of guard grills, basket guard grills and fan housings as accessories

  • Areas of application: Ventilation, refrigeration, air conditioning, automotive industry, wind power plants and the machinery/equipment industry

  • Optional blade size range: 200-1100mm
