Material: Impeller made of PA66
Bearing: Ball bearing
Speed control: Control input 0-5/10V or PWM
Working Temp: -25~ +60°C
Insulation Class: B
Protection Class: IP44
Approvals: CCC, CE
Discover more options and specifications by browsing our full selection of backward curved centrifugal blower models.

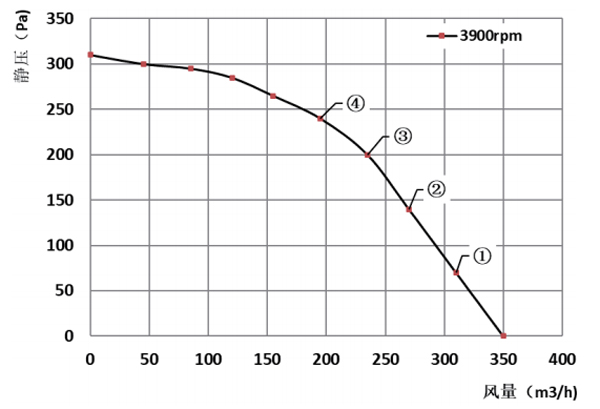

Performance:

Working Point | Static Pressure(Pa) | Airflow (m3/h) | Speed (r/min) | Power (W) |
1 | 70 | 310 | 3926 | 32 |
2 | 140 | 270 | 3936 | 35 |
3 | 200 | 235 | 3930 | 33 |
4 | 240 | 195 | 3930 | 31 |
Fan Model | Motor type | Voltage | Power | Current | Speed | Airflow | Noise |
(V) | (W) | (A) | (r/min) | (m3/h) | Lp:dB(A) | ||
BC133A-D72A6-00 | DM072A | DC24 | 31 | 1.3 | 3900 | 350 | 68 |
BC133A-D72A8-00 | DC48 | 31 | 0.65 | 3900 | 350 | 68 | |
BC133A-D72A0-00 | DC310 | 39 | 0.36 | 3900 | 350 | 68 |
