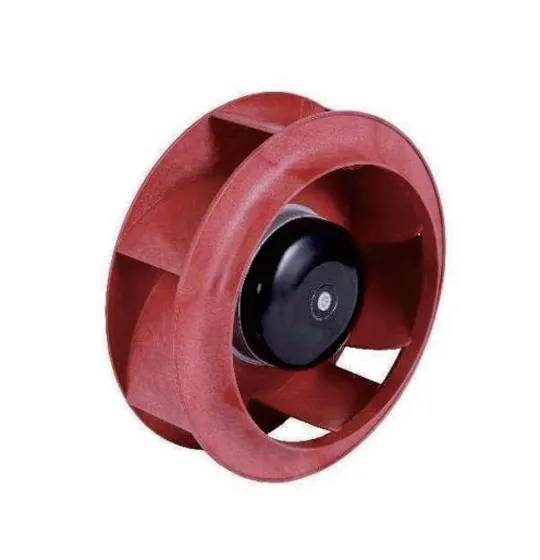

BC133A-E072A3 Backward Curved Fan 2 Speeds Stages Φ 133
BC133A-E072A3 Backward Curved Fan 2 Speeds Stages Φ 133

BC133A-E072A3 Backward Curved Fan 2 Speeds Stages Φ 133

Material: Impeller made of PA66

Bearing: Ball bearing

Speed control: 2speeds, with RD signal output

Working Temp: -25~ +60°C

Insulation Class: B

Protection Class: IP54

Approvals: CCC, CE

Gain insights into industry-leading technology by reviewing products that embody the innovation of top-tier backward curved centrifugal fan manufacturers.

Get a Free Quote

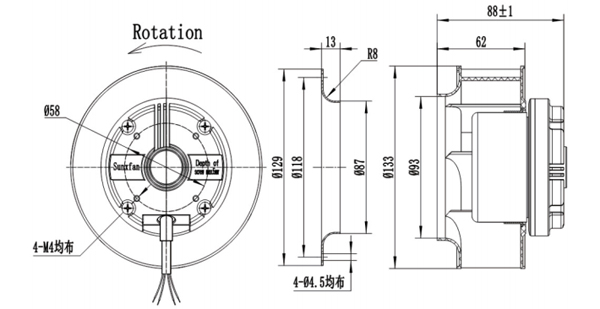

Dimension of BC133A-E072A3 Backward Curved Fan 2 Speed Stages Φ 133

Dimension of Backward Curved Fan 2 Speeds Stages Φ 133

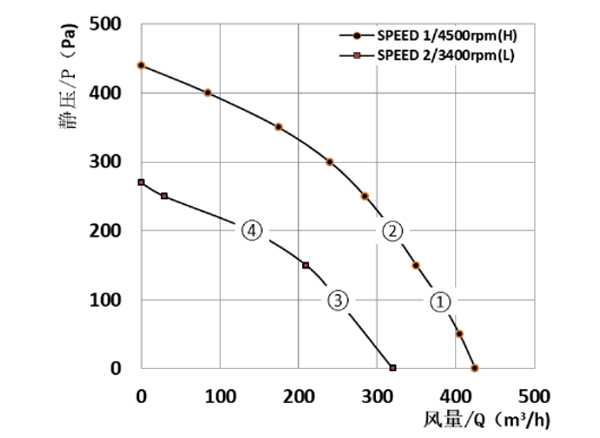

Parameter of BC133A-E072A3 Backward Curved Fan 2 Speeds Stages Φ 133

Performance:

Parameter of Backward Curved Fan 2 Speeds Stages Φ 133


Working Point

Static Pressure(Pa)

Airflow (m3/h)

Speed (r/min)

Power (W)

1

100

380

4480

86

2

200

320

4460

90

3

100

250

3350

58

4

200

140

3390

60


Parameter: (Can be customized)

Fan Model

Motor type

Voltage

Power

Current

Speed

Airflow

Noise

(V)

(W)

(A)

(r/min)

(m3/h)

Lp:dB(A)

BC133A-E072A3-**

EM072A

230V/50Hz

50

0.35

4500

420

75

20

0.2

3400

330

66
