sf146a e092 02 ec146 double inlet centrifugal fan blower
sf146a e092 02 ec146 double inlet centrifugal fan blower

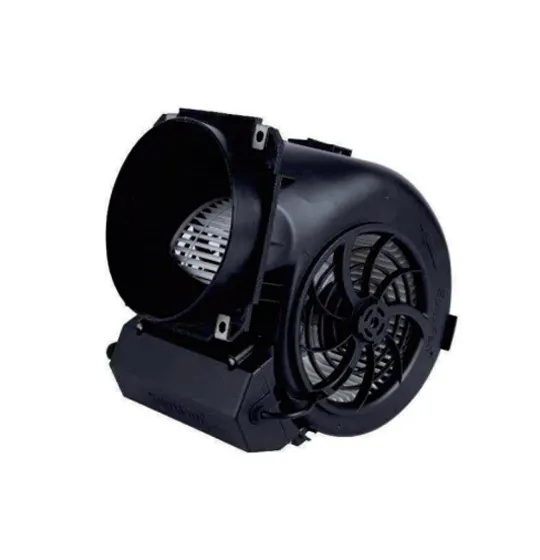

SF146A-E092-02 EC146 Double Inlet Centrifugal Fan Blower

Material: Impeller and housing made of PP

Bearing: Ball bearing

Speed control: Control input 0-5/ 10V or PWM

Working Temp: -25~ + 60°C

Insulation Class: F

Protection Class: IP54

Approvals: CCC, CE

Interested in comparing different ventilation solutions? Explore our complete range of forward curved centrifugal blower products.


Get a Free Quote

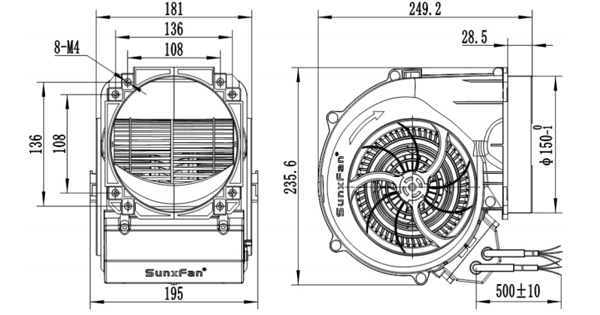

Dimension of SF146A-E092-02 EC146 Forward Curved Double Inlet Centrifugal Fan Blower Φ 146-150

Dimension of SF146A-E092-02 EC146 Forward Curved Double Inlet Centrifugal Fan Blower Φ 146-150


Parameter of SF146A-E092-02 EC146 Forward Curved Double Inlet Centrifugal Fan Blower Φ 146-150

Performance:

Parameter of SF146A-E092-02 EC146 Forward Curved Double Inlet Centrifugal Fan Blower Φ 146-150


Working point

Static Pressure(Pa)

Airflow (m3/h)

Speed (r/min)

Power (W)

1

180

680

2030

115

2

360

480

2520

117

3

200

820

2230

165

4

360

630

2550

160

5

200

940

2350

215

6

350

810

2676

220


Parameter: (lEEhood:26%)

Fan Model

Motor type

Voltage

Power

Current

Speed

Airflow

Noise

(V)

(W)

(A)

(r/min)

(m3/h)

Lp:dB(A)

SF146A-E092A3-01

EM092A

230VAC-50/60Hz

120

0.78

1650

900

57

SF146A-E092A3-02

165

1.08

1850

1020

64

SF146A-E092B3-03

EM092B

230VAC-50/60Hz

220

1.4

2100

1080

68
