sf146d e092a3 cs ec146 double inlet centrifugal fan blower
sf146d e092a3 cs ec146 double inlet centrifugal fan blower

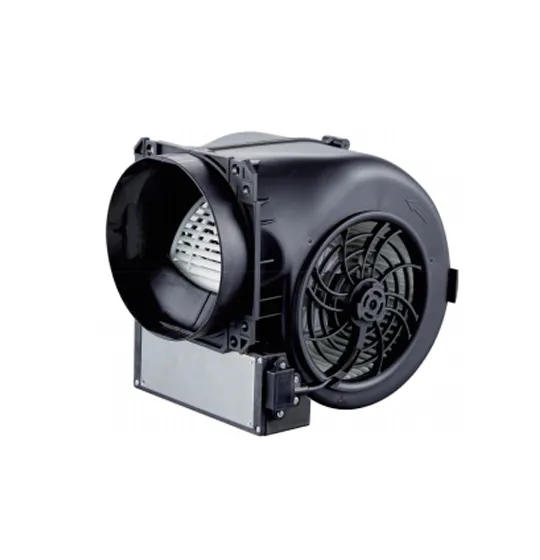

CAV FAN:SF146D-E092A3-CS EC146 Double Inlet Centrifugal Fan Blower

Material: Impeller and housing made of PP

Bearing: Ball bearing

Speed control: Control input 0-5/10V or PWM

Working Temp: -25~ +60°C

Insulation Class: F

Protection Class: IP54

Approvals: CCC, CE

Looking for a fan with specific performance characteristics? Browse our full catalog of forward curved fan options.

Get a Free Quote

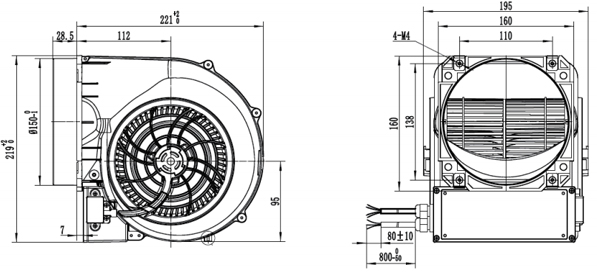

Dimension of SF146D-E092A3-CS EC146: Constant Air Volume Double Inlet Centrifugal Fan Blower

Dimension of SF146D-E092A3-CS EC146: Constant Air Volume Double Inlet Centrifugal Fan Blower

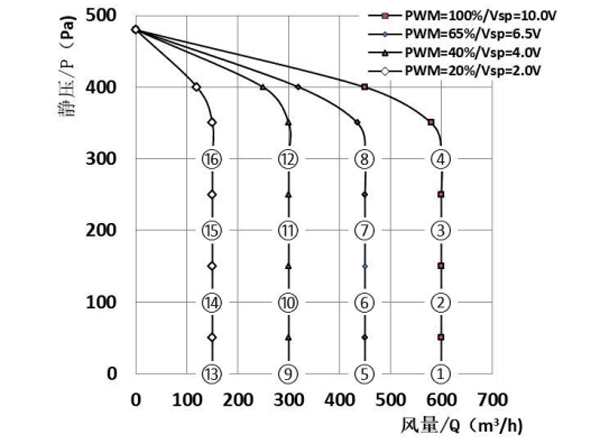

Parameter of SF146D-E092A3-CS EC146 Forward Curved Double Inlet Centrifugal Fan Blower Φ 146-150

Performance:

Parameter of SF146D-E092A3-CS EC146 Forward Curved Double Inlet Centrifugal Fan Blower Φ 146-150


Working Point

Static Pressure(Pa)

Airflow (m3/h)

Speed (r/min)

Power (W)

2

200

600

2030

100

6

200

450

1950

69

8

200

300

1850

43

14

200

180

1780

30


Parameter:

Fan Model

Motor type

Voltage

Power

Current

Speed

Airflow

Noise

(V)

(W)

(A)

(r/min)

(m3/h)

Lp:dB(A)

SF146D-E092A3-CS

EM092A

230VAC-50/60Hz

140

1.0

1150

600

64


Products
Warmly welcomes your messages, emails or calls to us, ​SunxFan will dedicate our full resources to address it promptly.
Centrifugal Fans & Axial Fans from SunxFan
SF146D-E092B3-43 EC146 Double Inlet Centrifugal Fan Blower SF146D-E092B3-43 EC146 Double Inlet Centrifugal Fan Blower

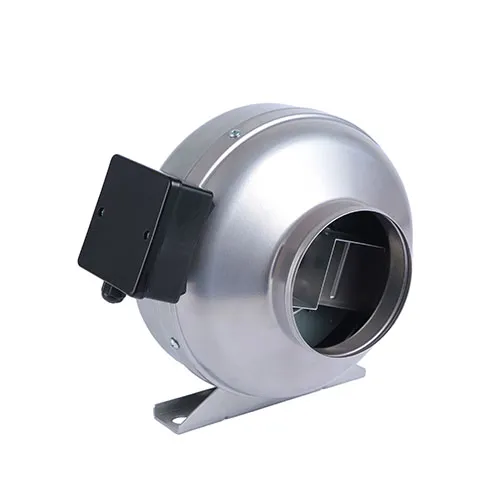

CF200A-A250B3-F1 AC Duct Fans CF200A-A250B3-F1 AC Duct Fans
