Material: Impeller and housing made of PP
Bearing: Ball bearing
Speed control: 4 fixed speeds
Working Temp: -25~ +60°C
Insulation Class: F
Protection Class: IP54
Approvals: CCC, CE
To learn more about our capabilities and the full spectrum of forward curved fan products we manufacture, please visit our category overview page.

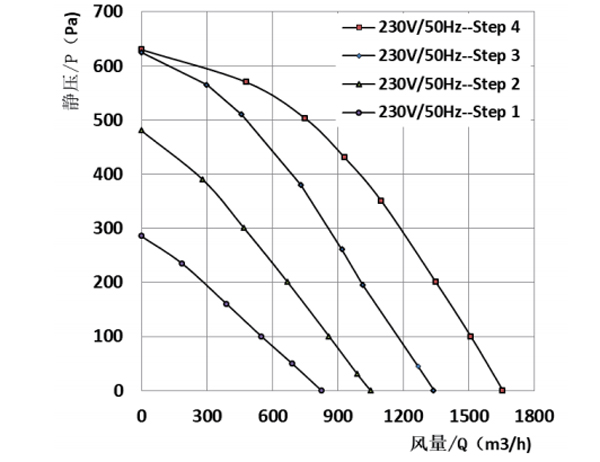

Performance:

Working Point | Static Pressure(Pa) | Airflow (m3/h) | Speed (r/min) | Power (W) |
1 | 200 | 1320 | 2150 | 262 |
2 | 180 | 1100 | 1450 | 158 |
3 | 160 | 760 | 1550 | 82 |
4 | 100 | 580 | 1230 | 42 |
Fan Model | 4Speeds | Voltage | Power | Current | Speed | Airflow | Noise |
(V) | (W) | (A) | (r/min) | (m3/h) | Lp:dB(A) | ||
SF160D-E092B3-42 | Step 4 (SF) | 230VAC-50/60Hz | 235 | 1.5 | 1650 | 1650 | 64 |
Step 3 (HF) | 160 | 1.0 | 1450 | 1450 | 59 | ||
Step 2 (MF) | 80 | 0.53 | 1180 | 1150 | 53 | ||
Step 1 (LF) | 40 | 0.29 | 950 | 825 | 49 |
