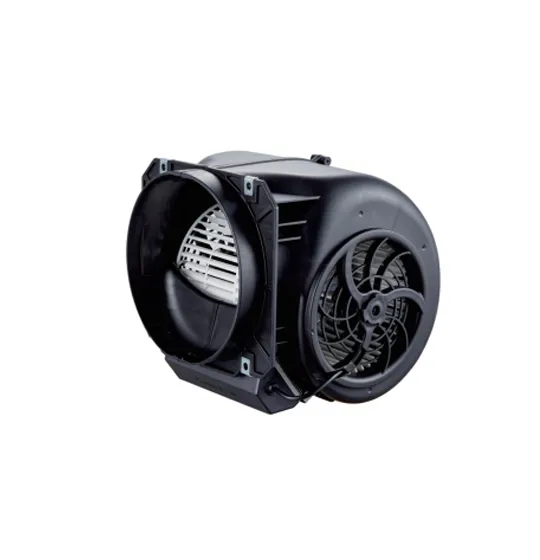

SF160D-E092B3-02 EC160 Double Inlet Centrifugal Fan Blower

Material: Impeller and housing made of PP

Bearing: Ball bearing

Speed control: Control input 0-5/10V or PWM

Working Temp: -25~ +60°C

Insulation Class: F

Protection Class: IP54

Approvals: CCC, CE

Find the perfect match for your system from our comprehensive assortment of forward curve blower equipment.

Get a Free Quote

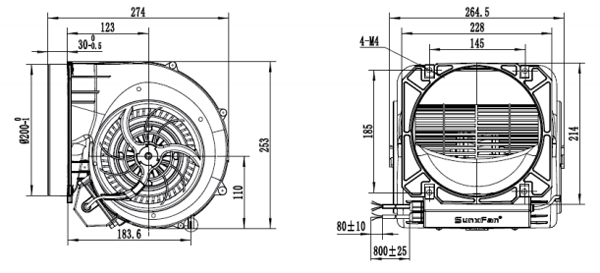

Dimension of SF160D-E092B3-02 EC160 Forward Curved Double Inlet Centrifugal Fan Blower Φ 160-200

Dimension of SF160D-E092B3-02 EC160 Forward Curved Double Inlet Centrifugal Fan Blower Φ 160-200

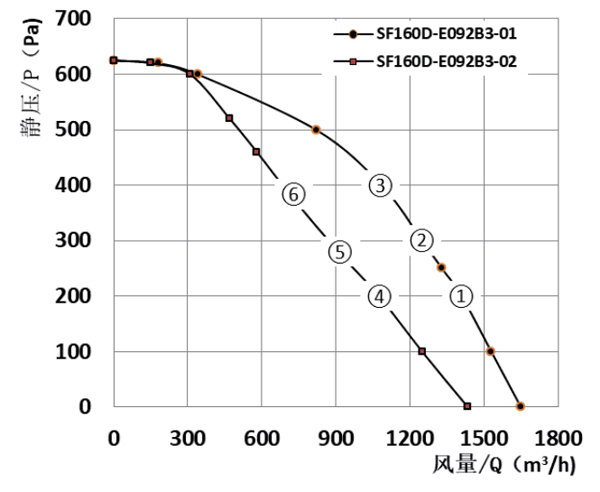

Parameter of SF160D-E092B3-02 EC160 Forward Curved Double Inlet Centrifugal Fan Blower Φ 160-200

Performance:

Parameter of SF160D-E092B3-02 EC160 Forward Curved Double Inlet Centrifugal Fan Blower Φ 160-200


Working point

Static Pressure(Pa)

Airflow (m3/h)

Speed (r/min)

Power (W)

1

200

1410

2080

260

2

300

1250

2250

264

3

400

1085

2480

268

4

200

1075

1750

30

5

280

910

1950

165

6

380

720

2150

168


Parameter: (Can be customized)

Fan Model

Motor type

Voltage

Power

Current

Speed

Airflow

Noise

(V)

(W)

(A)

(r/min)

(m3/h)

Lp:dB(A)

SF160D-E092B3-01

EM092B

230VAC-50/60Hz

165

1.1

1400

1425

54

SF160D-E092B3-02

260

1.75

1650

1650

64
