dg160a d092a forward curved single inlet centrifugal fan Φ 160 62
dg160a d092a forward curved single inlet centrifugal fan Φ 160 62

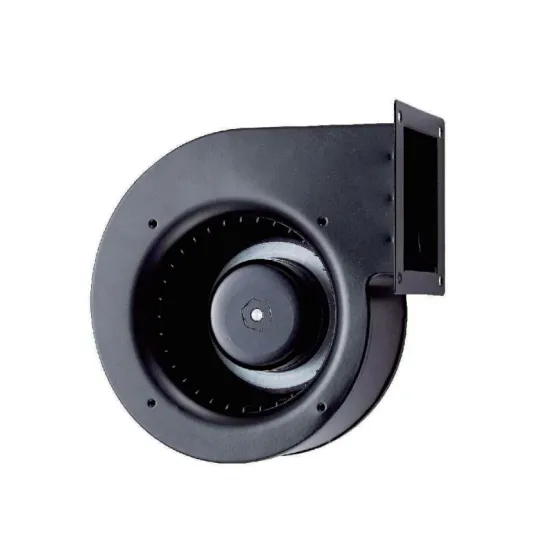

DG160A Forward Curved Single Inlet Centrifugal Fan Φ 160-62

Material: Impeller made of PP, scroll housing made of cool-rolled steel sheet

Bearing: Ball bearing

Speed control: Control input 0-5/10V or PWM

Working Temp: -25~ +60°C

Insulation Class: B

Protection Class: IP44

Interested in efficient airflow technology? Browse our full collection of forward curved centrifugal blower series.


Get a Free Quote

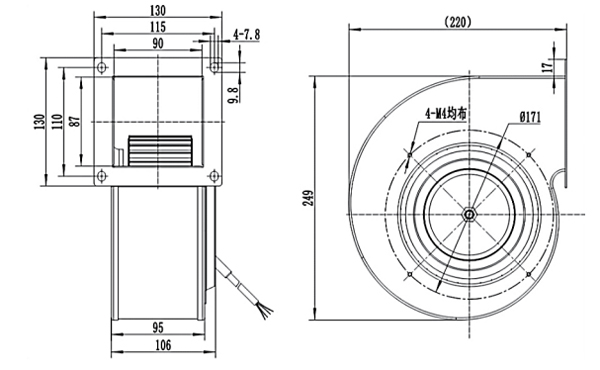

Dimension of DG160A Forward Curved Single Inlet Centrifugal Fan Φ 160-62

Dimension of DG160A Forward Curved Single Inlet Centrifugal Fan Φ 160-62

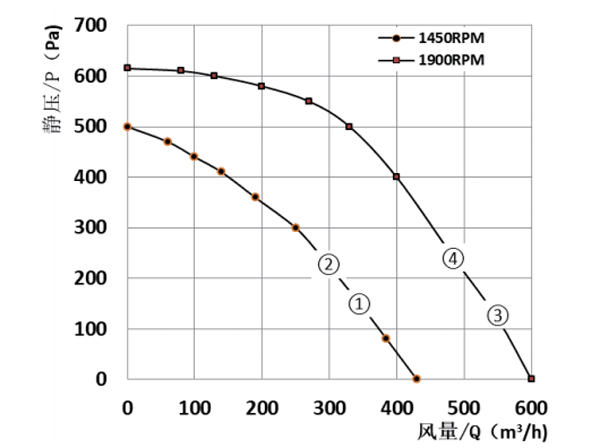

Parameter of DG160A Forward Curved Single Inlet Centrifugal Fan Φ 160-62

Performance:

Parameter of DG160A Forward Curved Single Inlet Centrifugal Fan Φ 160-62


Working Point

Static Pressure(Pa)

Airflow (m3/h)

Speed (r/min)

Power (W)

1

150

350

1680

59

2

250

280

1790

60

3

120

550

2050

122

4

240

490

2280

125


Parameter: (Can be customized)

Fan Model

Motor type

Voltage

Power

Current

Speed

Airflow

Noise

(V)

(W)

(A)

(r/min)

(m3/h)

Lp:dB(A)

DG160A-D072A6-**

DM072A

DC24

60

2.5

1450

430

55

DG160A-D092A8-**

DM092A

DC48

120

2.95

1900

600

62

DG160A-D092A0-**

DC310

120

0.87

1900

600

62
