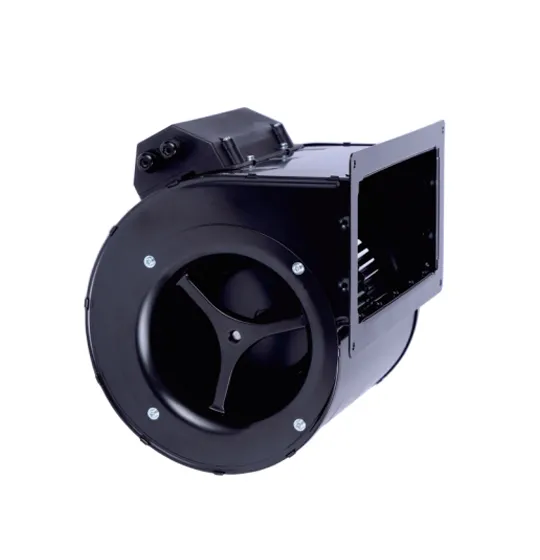

SF146C-E092B3-01 EC146 Double Inlet Centrifugal Fan Blower

Material: Impeller made of galvanized plate, scroll housing made of cool-rolled steel sheet

Bearing: Ball bearing

Speed control: Control input 0-5/1 0V or PWM

Working Temp: -25~ +60°C

Insulation Class: F

Protection Class: IP454

Approvals: CCC, CE

This product represents one of many high-efficiency options in our forward curved centrifugal blower family. See them all here.
