sf146d e092b3 43 ec146 double inlet centrifugal fan blower
sf146d e092b3 43 ec146 double inlet centrifugal fan blower

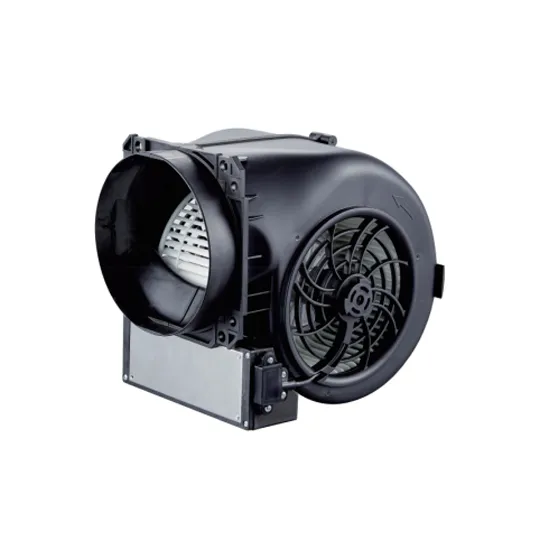

SF146D-E092B3-43 EC146 Double Inlet Centrifugal Fan Blower

Material: Impeller and housing made of PP

Bearing: Ball bearing

Speed control: 4 fixed speeds

Working Temp: -25~ +60°C

Insulation Class: F

Protection Class: IP54

Approvals: CCC, CE

Return to our main product lineup to discover more forward curve blower solutions suitable for your application.

Get a Free Quote

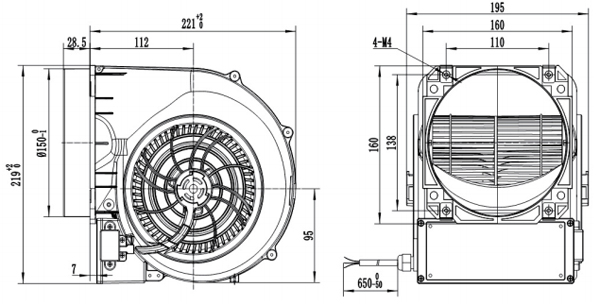

Dimension of SF146D-E092B3-43 EC146 Forward Curved Double Inlet Centrifugal Fan Blower Φ 146-150

Dimension of SF146D-E092B3-43 EC146 Forward Curved Double Inlet Centrifugal Fan Blower Φ 146-150

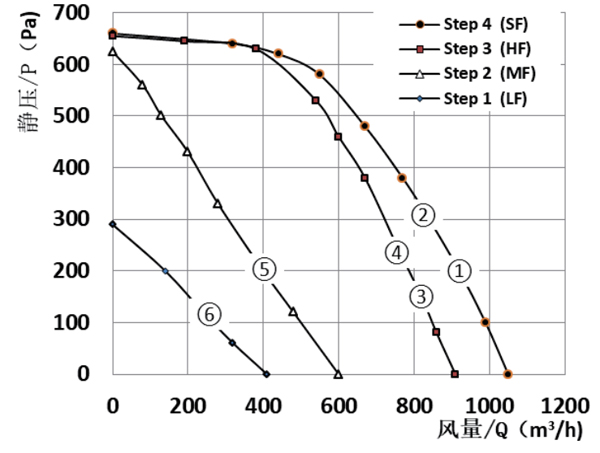

Parameter of SF146D-E092B3-43 EC146 Forward Curved Double Inlet Centrifugal Fan Blower Φ 146-150

Performance:

Parameter of SF146D-E092B3-43 EC146 Forward Curved Double Inlet Centrifugal Fan Blower Φ 146-150


Working Point

Static Pressure(Pa)

Airflow (m3/h)

Speed (r/min)

Power (W)

1

200

920

2380

221

2

300

860

2550

226

3

150

820

2150

166

4

240

760

2360

180

5

200

400

1920

61

6

120

240

1450

26


Parameter: (lEEhood:27%)

Fan Model

4 Speed

Voltage

Power

Current

Speed

Airflow

Noise

(V)

(W)

(A)

(r/min)

m3/h

Lp:dB(A)

SF146D-E092B3-43

Step 4 (SF)

230VAC-50/60Hz

200

1.2

2000

1050

65

Step 3 (HF)

140

0.8

1750

910

59

Step 2 (MF)

40

0.3

1150

600

53

Step 1 (LF)

15

0.15

800

400

45
